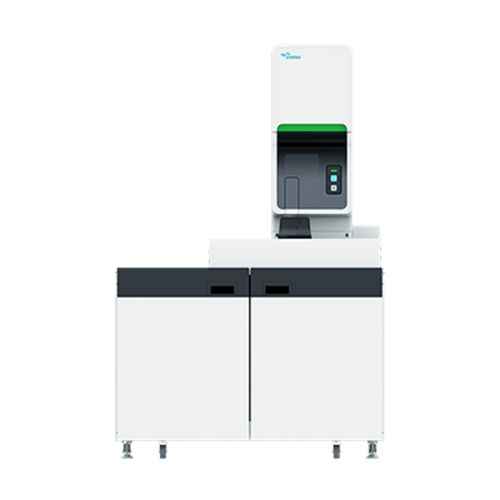

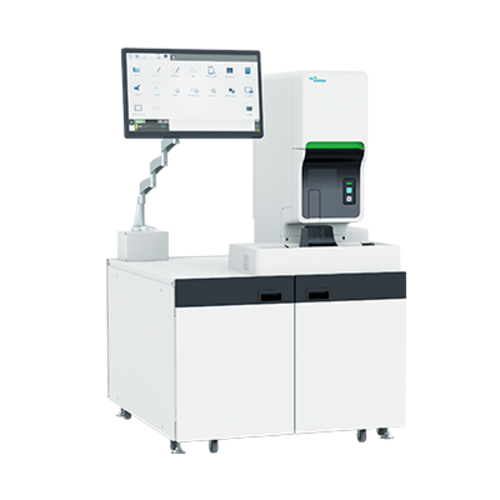

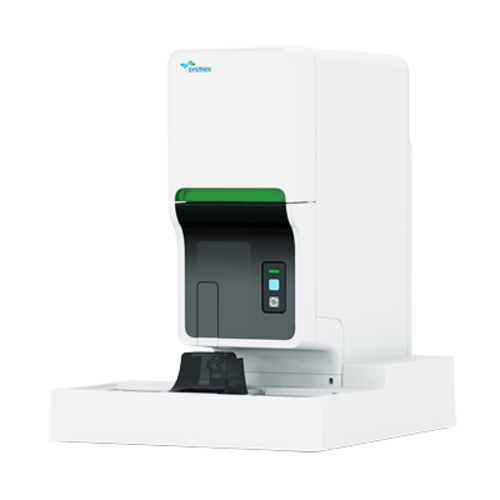

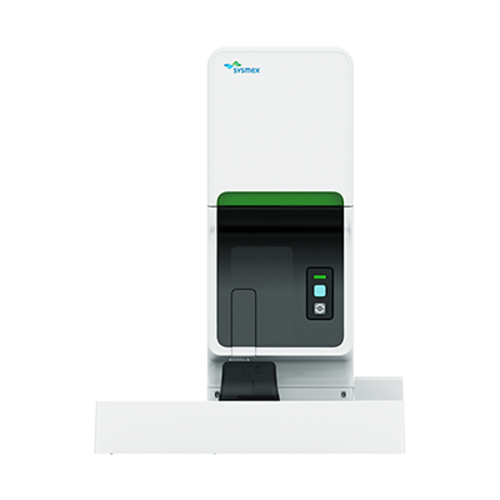

XN-1000

Sysmex’s flagship analyser

100 samples/h with a sampler capacity of 5 racks with 10 vials each
Short turnaround times
Networking and remote services capabilities
Automatic reflex measurement in case of unreliable results
Optional integration of slide maker & stainer

This is a stand-alone instrument. In its Rerun & Reflex configuration, the XN-1000 offers reproducible result quality in the shortest possible time. By automatically reanalysing samples for which results are considered unreliable, it significantly reduces manual interventions and frees up time and resources. With no compromise on turnaround time. Reagent management is simple too – if you want we can integrate your reagents in the optional analyser wagon.

The XN-1000 can be equipped with all the available diagnostic applications. Depending on what is installed, the XN Rerun & Reflex performs a range of rule-based tests. The positive samples are fed into extended measurement automatically. Extended measurement is only performed if it adds additional diagnostic value.

While the XN-1000 is a stand-alone system, optional software can still make it uniquely flexible. It can be networked with other XN solutions at other locations. Think of individual systems for measuring body fluids on neurology wards. Or transfusion centres. And thanks to our remote services, we can together define levels of support quality, guaranteed service response times and ensure maximum system uptime.

Technical Specifications

Measurement principles	WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry RBC/PLT: Hydrodynamically focussed impedance HGB: Cyanide-free SLS haemoglobin
Aspiration volume	88 µL in whole blood (WB) mode and body fluid (BF) mode
Throughput	up to 100 samples/h
Quality control material	XN Check (three levels) and XN Check BF (two levels)
Parameters	XN-CBC (always with NRBC) & XN-DIFF (always with IG) Whole Blood WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG# With RET (optional) RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O With PLT-F (optional) PLT-F, IPF, IPF# With WPC (optional) Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP# XN Stem Cells licence HPC%, HPC# Body Fluids with XN-BF WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF# (optional)
Configurations	XN-1000 [DIFF] XN-1000 [WPC]
